PRODUCTS

iFLY Tunnel Systems provides the most choices, widest product range and greatest flexibility in the industry. Choose from our existing models ranging from 10 – 32 ft diameter (3m-10m) or customize a wind tunnel to the exacting requirements of your project.

iFLY’s most popular models based on customer demand are 14 foot (4.3 meter) and 12 foot (3.7 meter) recirculating wind tunnels.

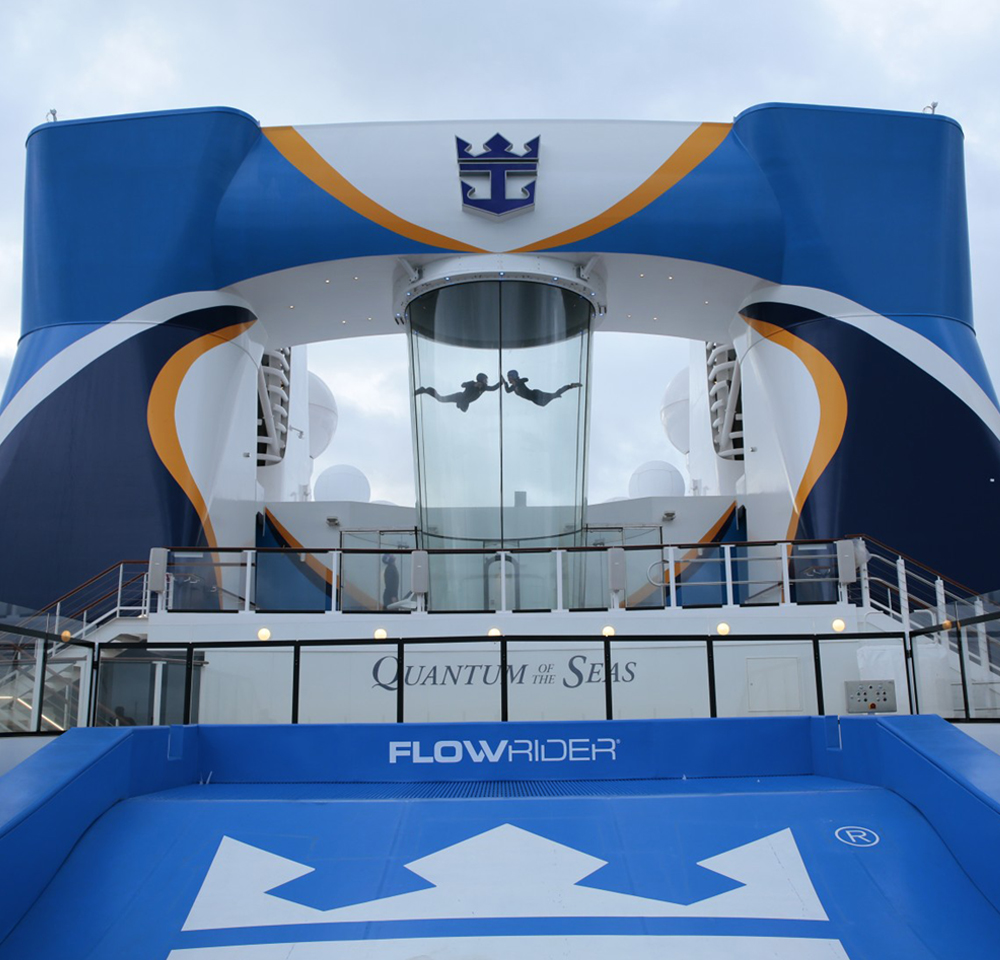

Custom projects include the world’s largest wind tunnel at a massive 32 foot / 9.8 meter diameter, five sea-worthy recirculating tunnels resting atop the upper terrace of Royal Caribbean cruise ships, and seven tunnels currently operating for military customers.  We put more wind tunnels, in more places than any manufacturer in the world.

Gen X - 12R4
12 Foot / 3.7 Meter Diameter
4 Fans (dual recirculating air towers)

The Generation X is the newest iFLY design, poised to rapidly change the face of the experiential entertainment industry.

Gen X delivers an enhanced flight experience while focusing on creating a “show” for both passing pedestrians and customers inside the facility.

Gen X is also perfect where shorter land leases are only available, or you wish to test the demand in a market. It can be rated as a temporary structure and approved as a “ride”.

This model can be fully assembled in 6-8 weeks, dramatically reducing the time to opening vs other wind tunnels.  It is significantly less expensive to construct than other models, and can be re-located.

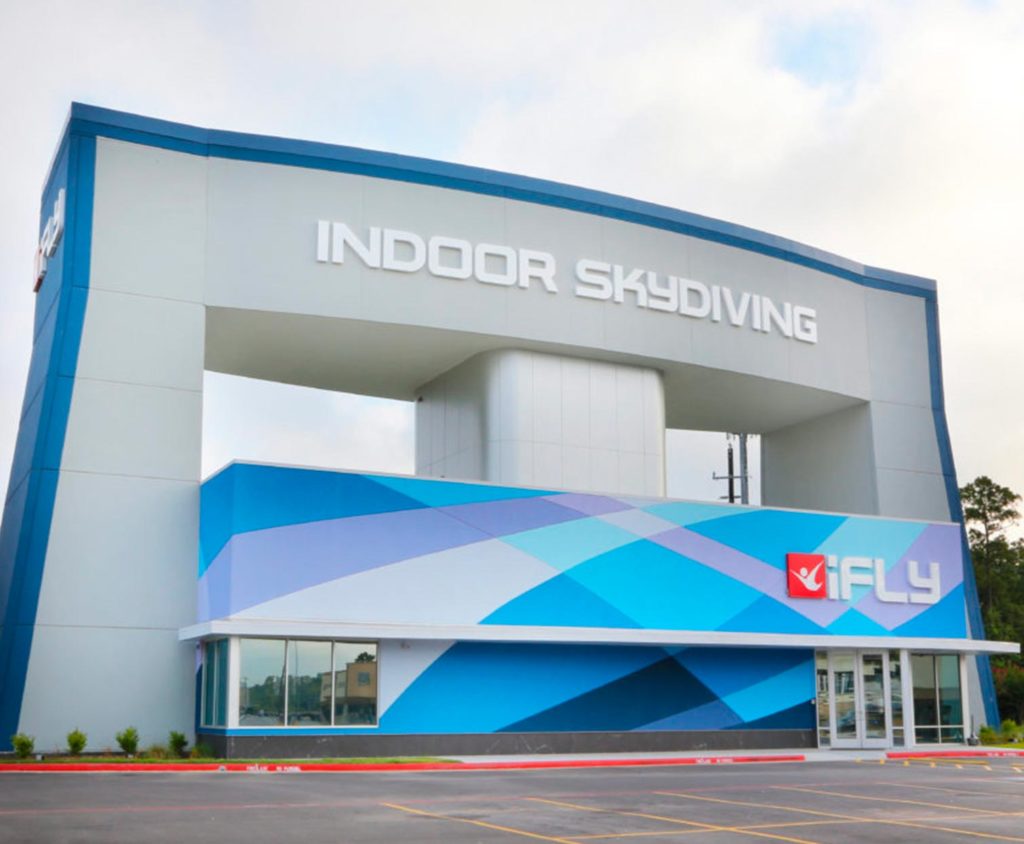

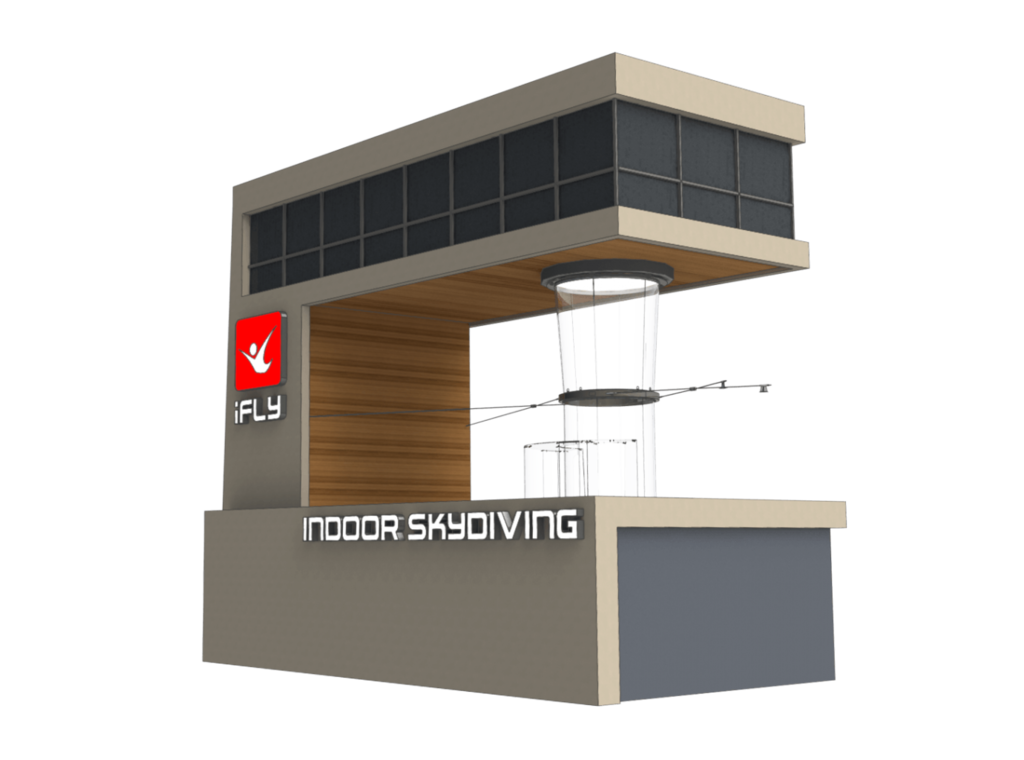

Retail Concept

Gen X - 12R4

Download Specs

Gen 9 - 14R4
14 Foot / 4.3 Meter Diameter
4 Fans (dual recirculating air towers)

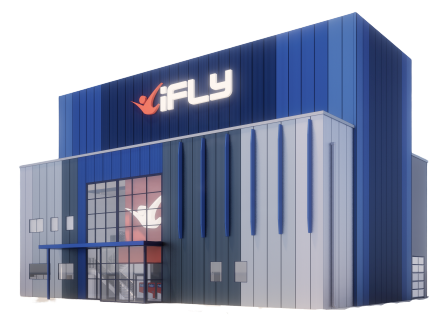

The Gen 9 – 14R4 is iFLY’s most innovative redesign to date and the new flagship prototype of the industry standard 14-foot tunnel. As an exemplary model for all entertainment, sport, and military users, the Gen 9 was redesigned for both the skydiver and the tunnel owner. The model provides a flight chamber suitable to the most elite of competitions. Considerable alterations to the construction requirements save costs by eliminating excavation and shortening construction timelines with a simplified steel design. Enhancing the customer and spectator experience, the floor plan is optimized with years of experience from our corporate fleet.

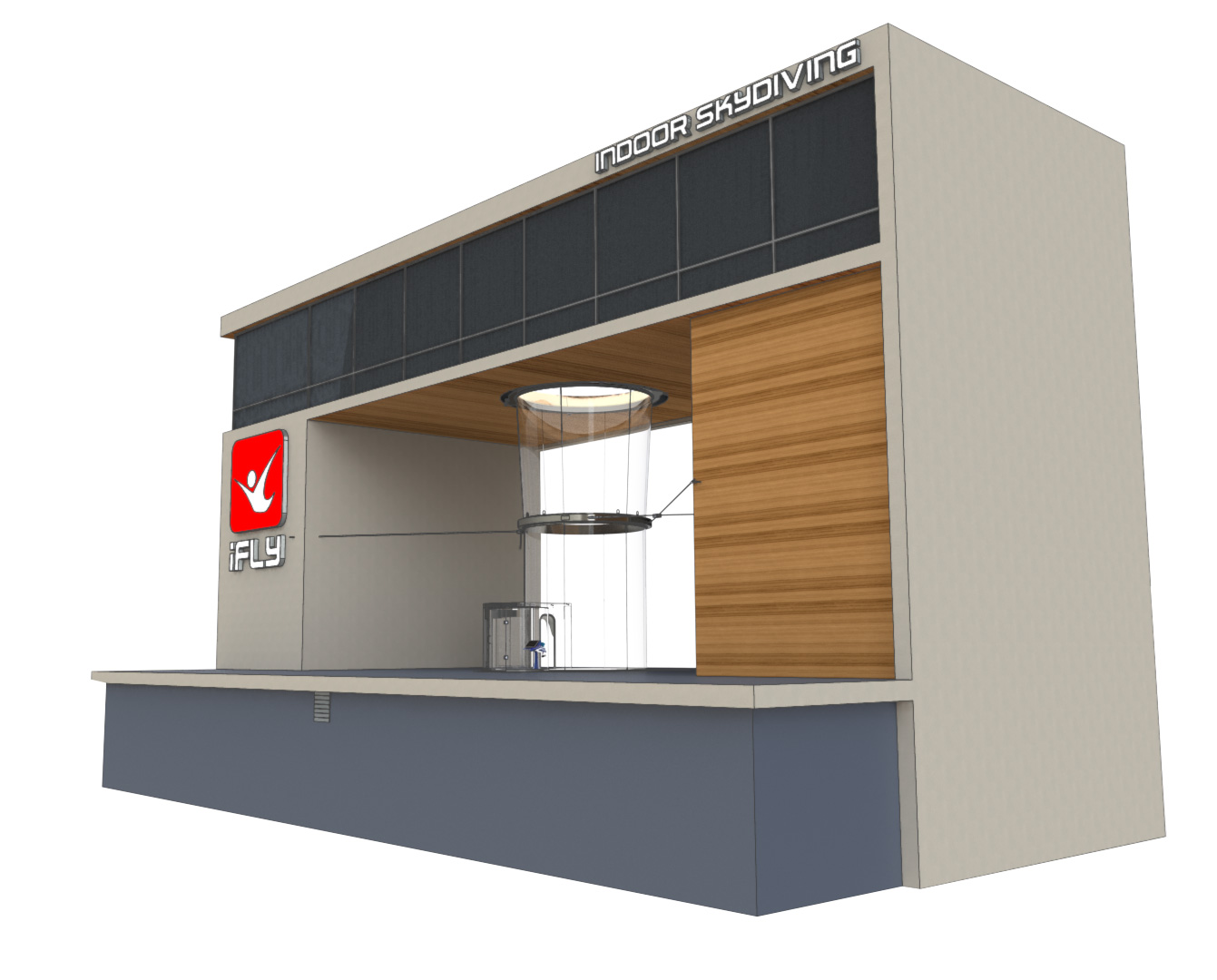

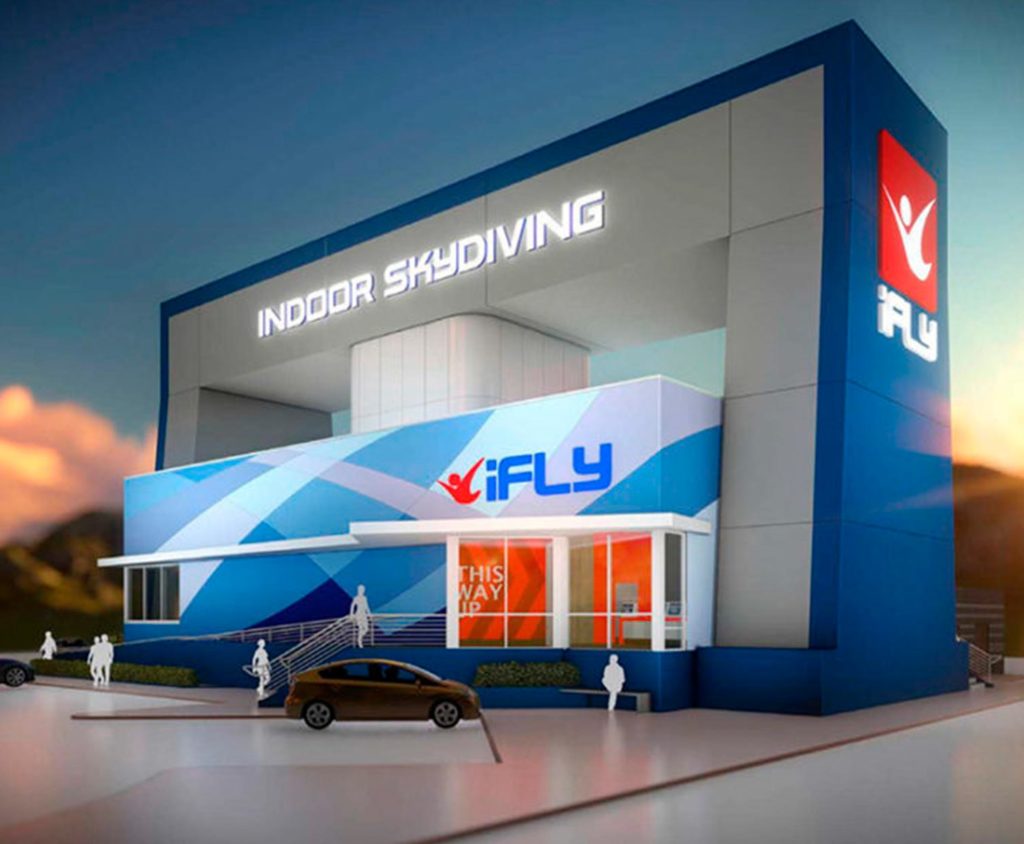

Design Phase

Gen 9 - 14R4

Download Specs

Gen 8 - 12R4
12 Foot / 3.7 Meter Diameter
4 Fans (dual recirculating air towers)

This model was designed to reduce project costs by significantly reducing the amount of excavation (up to 4 meters / 13 feet) historically required for construction of wind tunnels. This patent pending technology has been found patentable buy the European Patent Office.

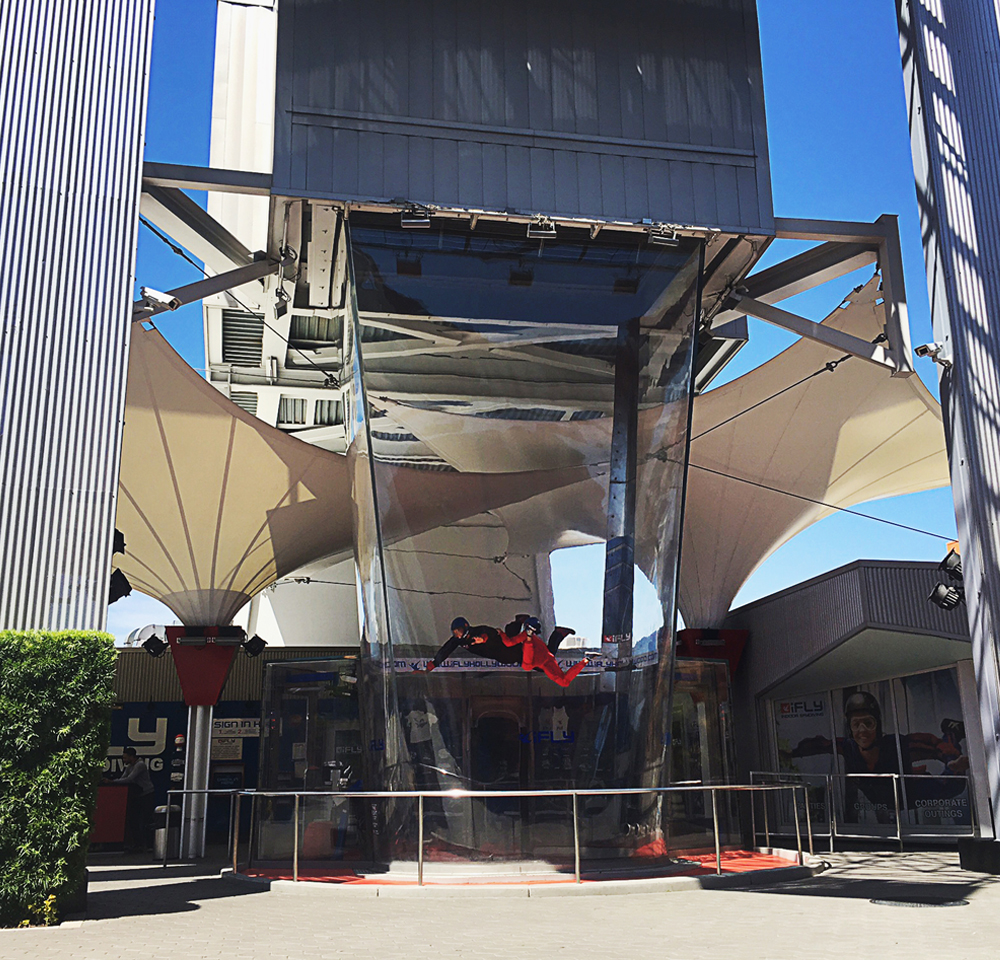

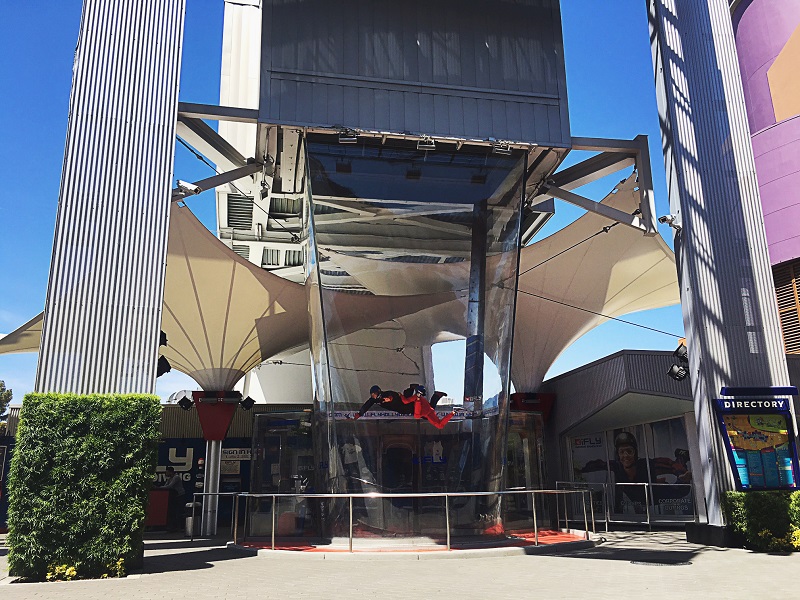

The Gen 8 – 12R4 has been built around the world including Australia, Indonesia, Canada and in multiple US cities. Based on actual performance, this 12-foot model is capable of generating equivalent revenues of a 14-foot model but with reduced construction costs.

Retail Concept

Gen 8 - 12R4

Download Specs

Gen 7 - 14R4
14 Foot / 4.3 Meter Diameter 4 Fans (dual recirculating air towers)

14-foot wind tunnels represent almost 50% of iFLY facilities around the globe. The Gen 7 -14R4 is the most common tunnel within the corporate fleet and has become an industry standard. Even with iFLY’s continuous innovation and ground breaking designs, wind tunnel purchasers still love the tried and true unit that helped spread iFLY across the world.

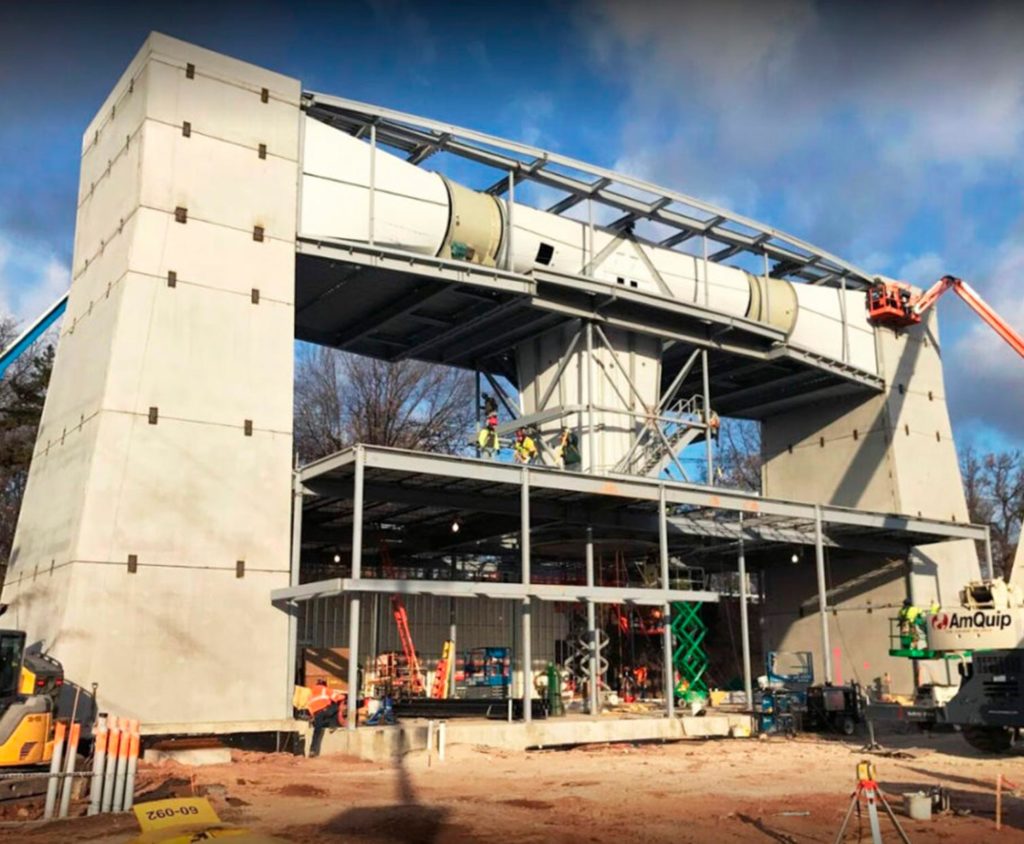

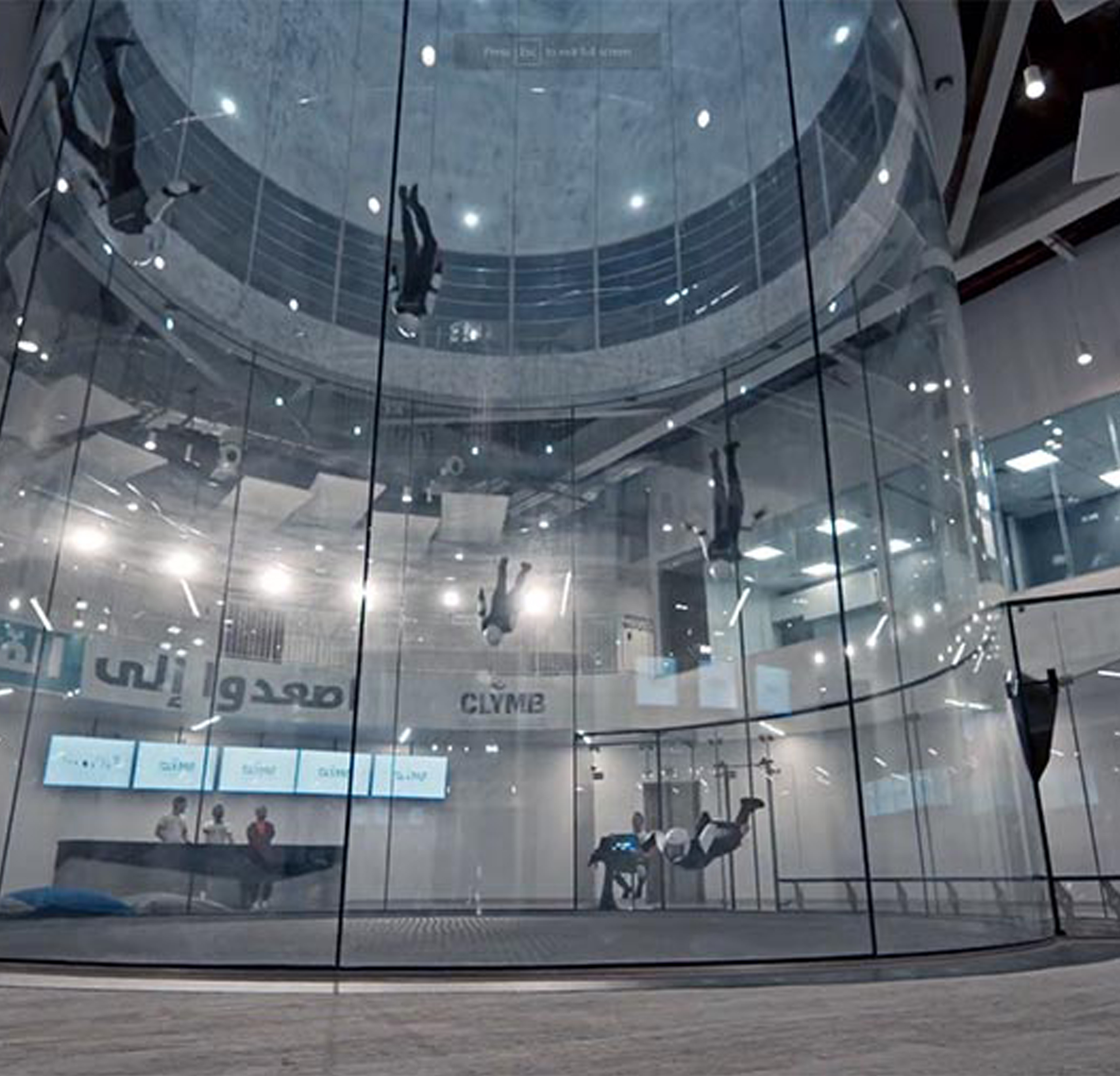

Construction Phase

Gen 7 - 14R4

Download Specs

Gen 7 - 12R2​
12 Foot / 3.7 Meter Diameter 2 Fans (single recirculating air towers)

The Gen7 – 12R2 was designed carefully with custom projects in mind. The single return air tower format is better suited for narrow floor plans or for greater space around the flight chamber is important, such as auditoriums or wide-open floor plans.

We learned from models in Denver and San Francisco that enthusiasts and pro flyers that practice in a 12 foot tunnel gravitate towards an extended flight chamber and we’ve thus enhanced the flying area below the diffuser with a more spacious column of air.

Design Phase

Gen 7 - 12R2

Download Specs

GEN M

Smaller markets and special situations demand innovation. The Gen M models open new markets in the most economical way, providing the best ROI opportunities.

The benefit of Gen M (M for Modular) is that it can be integrated into a wide variety of challenging locations including malls.

It is fast to deploy making it ideal for large events, seasonal operations, stadiums and as a lower risk option for smaller markets.

Gen M – 10.5 (Open)
10.5 Foot / 3.2 Meter Diameter
Open Flow

The Gen M – 10.5 Open model has a 10.5-foot(3.2) diameter flight chamber. This entertainment-focused solution is great for incorporation within existing leisure parks, entertainment facilities, and outdoor retail centers. Available as a turn-key product, the Gen M-10.5 Open provides the world’s smoothest open flow air quality.

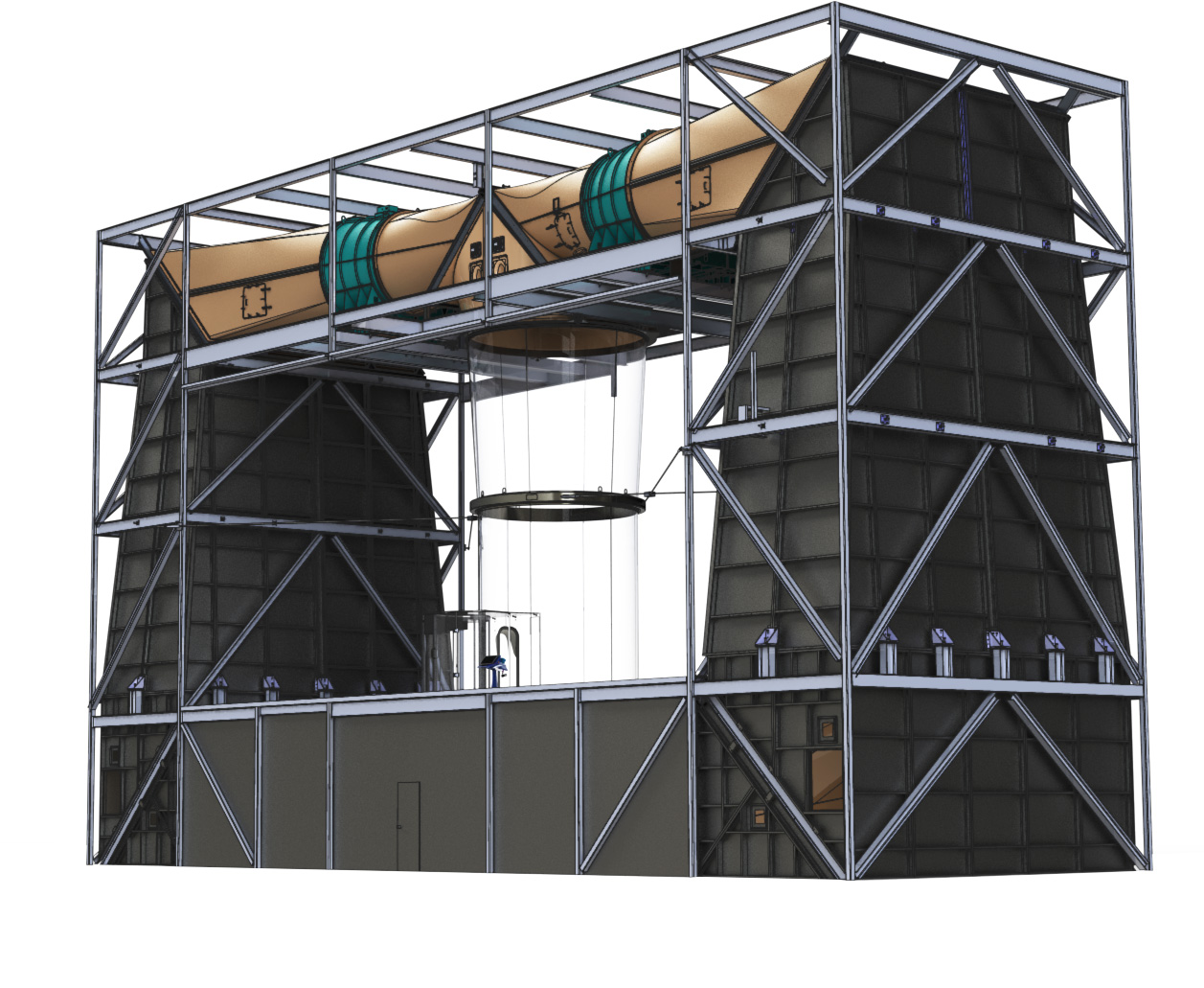

Equipment Package

Gen M - Open

Download Specs

Gen M - Recirculating
10.5 Foot / 3.2 Meter Diameter
4 Fans (dual recirculating air towers)

Our Gen M – 10.5 Recirculating model enjoys a 10.5-foot (3.2m) flight chamber cross section using our new modular design. It’s equally suited as a standalone attraction or integrated into existing structures. Available in select markets as a turn-key solution, its modular construction allows for rapid construction and deconstruction times, and site relocation providing strategic advantages to tunnel owners and operators. With best in class dual return flow path and industry-leading aerodynamic performance, the Gen M – 10.5 Recirculating tunnel will satisfy both beginner and advanced fliers.

Equipment Package

Gen M - Recirculating

Download Specs

CUSTOM TUNNEL SYSTEMS

 iFLY Tunnel Systems designs and manufactures wind tunnels of all sizes, both vertical and horizontal. Beyond our standard models and sizes, we offer custom models of any size for any application. Previous Custom designs include 16′, 18′, 22′, and 32’ sizes (4.9m, 5.5m, 6.7M, and 9.8m). The iconic 32’ (9.8m) indoor skydiving tunnel in Abu Dhabi is the world’s largest and showcases our iFLY Tunnel Systems Brand. If you have the dream, we have the designers, engineers and expertise and can help deliver the solution. Invest in the dream of flight!
